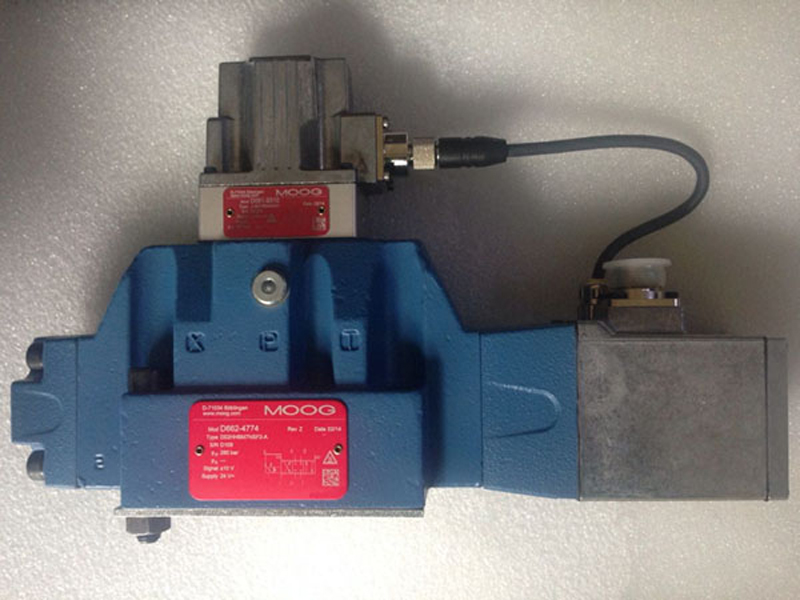

先導式比例伺服閥D661/D662/D663/D664/D665系列

發(fā)布于：2025-12-26 14:21:07

品牌名稱：Moog

重要參數：

最大工作壓力：350 bar (5000 psi)

供電電壓：24 VDC (18-32 VDC范圍)

額定信號：±10V 或 ±10mA

電氣連接：6+PE 或 11+PE接口


  • 產品詳情
ModelType DesignationRated Flow gpm [l/min] @ 75 psi [5 bar] per landDescription
D661-2745EP60HAAM4NSF21660Spool type:4-way,critical lap,linear;ServoJet? pilot
D661-4737P60HDAM4NSF2-O1660Spool type:4-way,10% overlap,linear;ServoJet? pilot
D661-2722EP80HAAM4NSF22180Spool type:4-way,critical lap,linear;ServoJet? pilot
D661-4732P80HDAM4NSF2-O2180Spool type:4-way,10% overlap,linear;ServoJet? pilot
D662-2714ED01HABM6NSF240150Spool type:4-way,critical lap,linear;High-flow ServoJet? pilot
D662-4724D01HDBM6NSF2-O40150Spool type:4-way,10% overlap,linear;High-flow ServoJet? pilot
D662-2718ED02HABM6NSF266250Spool type:4-way,critical lap,linear;High-flow ServoJet? pilot
D662-2722ED02HDBM6NSF266250Spool type:4-way,10% overlap,linear;High-flow ServoJet? pilot
D663-2709EL03HABM6NSF292350Spool type:4-way,critical lap,linear;High-flow ServoJet? pilot
D663-4705L03HDBM6NSF2-O92350Spool type:4-way,10% overlap,linear;High-flow ServoJet? pilot
D664-2708EL05HABM6NSF2145550Spool type:4-way,critical lap,linear;High-flow ServoJet? pilot
D664-4714L05HDBM6NSF2-O145550Spool type:4-way,10% overlap,linear;High-flow ServoJet? pilot
D665E2301K15FAHO6NSF24001500Spool type:4-way,critical lap,linear;2-stage MFB pilot
D665-4602K15FDHO6NSF2-O4001500Spool type:4-way,10% overlap,linear;2-stage MFB pilot




D661D662D663D664D665
控制功能Flow
安裝模式ISO 4401 Size 05 (NG10)ISO 4401 Size 07 (NG16)ISO 4401 Size 08 (NG25)ISO 4401 Size 08 (NG25+)ISO 4401 Size 10 (NG32)
水力數據
額定流量為每塊土地?p 5巴（75 psi）30 to 80 l/min150 to 250 l/min350 l/min550 l/min1000 - 1500 l/min





(8 to 21.1 gpm) (39.6 to 66 gpm)(92.4 gpm)(145.3 gpm)(264.1 to 396.2 gpm)
最大流量180 l/min (47.5 gpm)600 l/min (158 gpm)1,500 l/min (396.2 gpm)1,500 l/min (396.2 gpm)3,600 l/min (951  gpm)
最大作壓力Port P, A, B - 350 bar (5,000 psi)
Port T with Y internal - depends on Pilot Valve
Port T with Y external - 350 bar (5,000 psi)
0到100%步進的步進響應時間18 to 28 ms9 to 44 ms13 to 37 ms17  to 48 ms10 to 35 ms
電氣數據
電源電壓24 VDC (18 to 32 VDC)
額定信號選項+/-10 V, +/-10 mA
電氣連接器6+PE, 11+PE
