- 產品詳情
特性:
高溫穩定性高
快速熱身時間
低年齡比率
低相位噪聲
36x27mm包裝

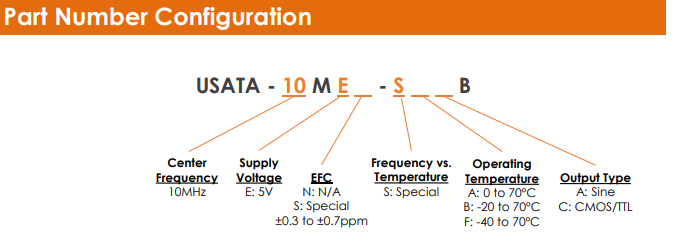

選型：
| Family | Type | Freq Range | Stability | Temp Range | PHN, dBc/Hz | Supply | Package |
| US-A | Ultra-Stable | 10MHz | 0 to +70°C: ±0.2ppb, -20 to +70°C: ±0.3ppb, -40 to +70°C: ±0.4ppb | 0°C to +70°C, -20°C to +70°C, -40°C to +70°C | -90 @ 1Hz -120 @ 10Hz -135 @ 100Hz -145 @ 1kHz -150 @ 10kHz | 5.0v | 36mm x 27mm |
US-M | Ultra-Stable | 10MHz | ±0.2ppb, ±0.3ppb, ±0.4ppb, ±0.5ppb | -20°C to +70°C | -95 @ 1Hz -120@ 10Hz -140 @ 100Hz -145 @ 1kHz -145 @ 10kHz | 5.0v | 51mm x 51mm |
